Fabricated Duplex Strainers /
DB125

Design Features:

• Inlet/outlet connections are FF flanged in accordance with ASME B16.1.

• Four individual operated butterfly valves (IFC series BI125W/L) are used to divert and isolate flow.

• 304 SS perforated screens are standard.

• Cast components.

• Quick opening clamp covers (MAWP 50 psig) are optional.

• Drain connections furnished with plug as standard.

• Inexpensive construction and quick delivery

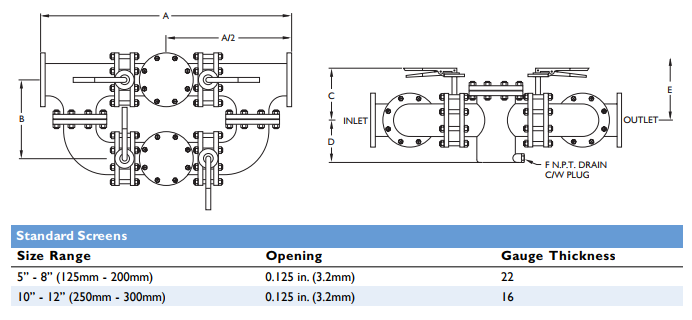

DB125
Size
(in / mm)
A
(in / mm)
B
(in / mm)
C
(in / mm)
D
(in / mm)
E
(in / mm)
F NPT
(in / mm)
Weight
(lb / kg)
Cover
Weight
(lb / kg)
Unit
Price
5" - 12547.38" - 120315.13" - 3846.63" - 1688.00" - 20321.25" - 5401" - 2520 - 9725 - 329
6" - 15051.00" - 129516.13" - 4107.00" - 1788.62" - 21922.62" - 5751" - 2526 - 12800 - 363
8" - 20061.00" - 154918.13" - 4619.25" - 23511.75" - 29530.25" - 7681 1/2" - 4045 - 201400 - 636
10" - 25069.25" - 175922.13" - 56210.75" - 27313.75" - 34935.25" - 8951 1/2" - 4070 - 321850 - 840
12" - 30079.25" - 201324.13" - 61313.38" - 34016.38" - 41643.13" - 10962" - 50110 - 503300 - 1497
